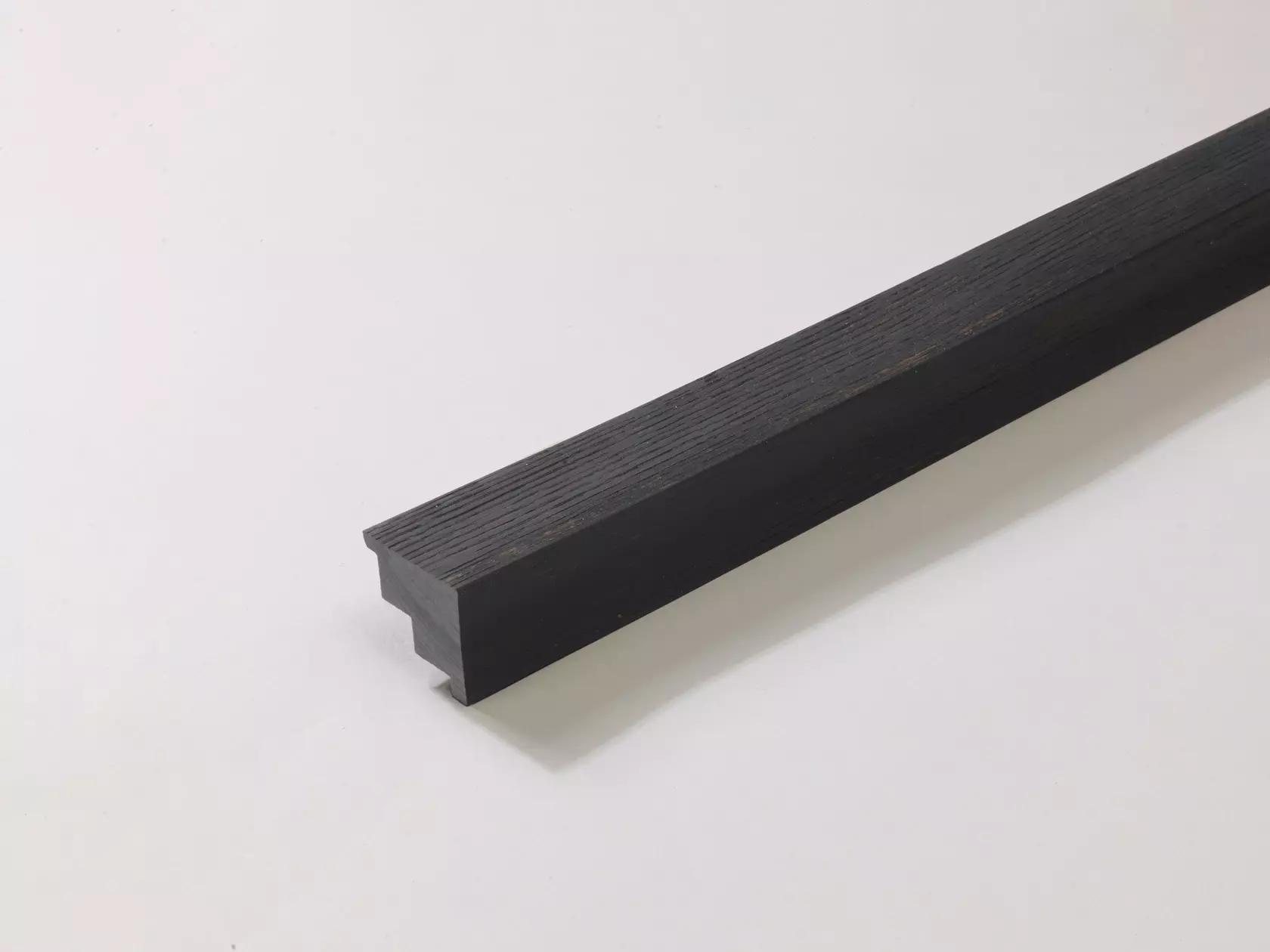

Millboard Envello Shadow Line+ Burnt Cedar External Corner

A fire-rated external corner profile (50mm x 50mm x 3050mm, 7.1kg) in Burnt Cedar for use with Millboard Envello Shadow Line+ cladding. Manufactured from flexible polymer resin with a Lastane surface, it conceals exposed building corners and blends seamlessly with the woodgrain finish of the cladding boards. Must be installed before starter trims. Fixed using perforated closure trim and 20mm stainless steel fixings.
Specifications
Dimensions & Construction
Construction
Flexible polymer resin with Lastane surface
Dimensions
W 50mm x L 3050mm x Thickness 50mm
Weight per ㎡
Weight: 7.1kg
Characteristics
Surface Composition
Flexible polymer resin / Lastane surface
Surface Texture
Woodgrain effect
Technical Specifications
Reaction to Fire (Walls & Ceilings) ISO 9705
Euroclass D fire rating (BS EN 13501-1)
Usage
Suitable Applications
External corner finishing for Shadow Line+ cladding installations
Suitable Sectors
Low-rise residential and commercial buildings
Installation
Installation Method
Fixed using perforated closure trim and 20mm stainless steel fixings. Must be installed before starter trims. Compatible with horizontal and vertical Shadow Line+ installations.
