Our panelling combines curated, authentic timber finishes with engineered performance designed for New Zealand lifestyles. Prefinished for convenience and crafted to the highest standards, every board undergoes real-world testing and rigorous quality control to deliver industry-leading durability, stability and long-term peace of mind.
Forté's Engineered Timber Overlay Wall & Ceiling System is designed for glue-down (and secret-pin) installation across a range of approved substrates, including GIB/plasterboard, timber framing/battens, plywood, and concrete, brick or blockwork. Each substrate type carries its own specific requirements around moisture content, level tolerances, and fixing method, all of which are addressed in full within the Design Guide.
Key specification points:
Approved substrates: GIB/plasterboard, timber framing/battens, plywood, and concrete/brick/blockwork
For internal use only, and walls must be load-rated to support the product's weight
Commercial spaces must meet Group 1-S fire rating
Wet area (E3) installations are limited to splash zones only (no continuous standing water or direct wet-floor showers) and must follow Forté's specified wet-area system, including waterproofing membrane, sealing, adhesives and edge detailing
Not recommended for areas with high moisture content or water splashes, such as kitchen splashbacks, bathrooms, toilets or laundries, unless installed per Forté's wet-area system
Full scope, limitations and technical detailing are set out in our Timber Overlay Wall & Ceiling System Design Guide.
Download our Timber Walls & Ceiling Panelling Design GuideA Range of Specifications
Across two collections, our European Oak wall & ceiling panelling offers extensive options in grade, dimensions, texture and finish to suit any space or style. Every board is prefinished with a durable finish and precision tongue & groove joint profiles for consistent, long-lasting performance.
Specifications | Forté Collections |
|---|---|
Species | European Oak |
Grade | Rustic |
Thickness | 15mm – 21mm |
Width | 50mm – 240mm |
Length | 400mm – 2200mm |
Wear Layer | 4mm – 6mm solid European Oak |
Construction | Multilayer Engineered |
Surface Finish Type | Prefinished |
Joint Profile | Tongue and Groove |
The Engineered Timber Overlay Wall & Ceiling System Design Guide is the reference point for specifying and detailing Forté's engineered timber collections with confidence. It covers the full system — from approved substrates and adhesive systems through to wet area detailing, transitions and trims, and climate control — giving specifiers the technical grounding needed to design a compliant, long-performing wall or ceiling from the substrate up.
Detailed system drawings and adhesive specifications accompany each substrate and condition, providing the construction detail required to translate the guide directly into working documentation.
The system addresses NZBC requirements across structure (B1), durability (B2), fire (C2, C3), internal moisture (E3), and hazardous building materials (F2). Every specification detail in the guide — from substrate build-ups to trims, transitions and skirting — is drawn from tested, documented practice, ensuring the system performs as intended across the full range of design conditions it's built for.
Download our Timber Overlay Flooring System Design Guide View on Eboss View on Programma View on Smartspec View on ProductspecCompliance & Testing
Forté's Timber Overlay Wall & Ceiling System addresses the relevant clauses of the New Zealand Building Code, giving specifiers a documented, reliable compliance pathway from concept through to Building Consent.
NZ Building Code Clause | Demonstrated by |
|---|---|
B1 STRUCTURE B1.3.1, B1.3.2, B1.3.3(a,j,q), B1.3.4 | Non-structural internal lining system, detailed to prevent detachment or hazardous failure and accommodate building movement without imposing loads on primary structural elements |
B2 DURABILITY B2.3.1(c1.1.1) | 25-year Structural Warranty and 7-year Finish Warranty; UV-lacquer coating protects the surface layer and core |
C2 PREVENTION OF FIRE OCCURRING C2.2 | Deemed to comply with Group 3 as per Table A1 of Appendix A in C/VM2, unless specified with an FR core |
C3 FIRE AFFECTING AREAS BEYOND FIRE SOURCE C3.4(a) | Fire performance properties meet applicable surface finish requirements as determined in accordance with C/AS2 |
E3 INTERNAL MOISTURE E3.3.4, E3.3.5, E3.3.6 | Durable, easily cleaned UV lacquer; not recommended for wet areas above 70% RH without Forté's specified wet-area system |
F2 HAZARDOUS BUILDING MATERIALS F2.3.1 | Super E0 Formaldehyde emission rating |
Forté is committed to reducing its impact on the environment across every stage of production, from responsible forest sourcing through to the long-term performance of the products themselves. This commitment is backed by third-party certification: Forté holds an FSC Promotional Licence and FSC Chain of Custody Certification (SGSHK-COC-510037), alongside PEFC Chain of Custody Certification (SGSCH-PEFC-COC-510014), ensuring products are sourced from forests managed to protect biodiversity, support local communities, and uphold fair labour practices.
Engineered timber itself carries genuine environmental advantages over solid timber. Because only the wear layer is solid hardwood, engineered panelling uses roughly a third of the timber resource required for solid timber of the same dimensions — alongside low VOC emissions, a long lifespan, and the ability to be recycled or repurposed at end of life.
Every detail, one point of contact. Speak to a Forté specification consultant and get the technical support, documentation, and product knowledge you need to specify our timber walls & ceiling panelling with confidence — all from one place.
ENQUIREWhat substrates can this panelling go over?
Gib/plasterboard (level and securely fixed), timber framing or battens (useful over uneven surfaces, with moisture content kept below 12 percent), and concrete or masonry (with approved adhesives and battens, surface dry and level). Other substrates need a case-by-case check with Forté Technical Support.
How is it fixed?
Glue-down with secret pinning is the recommended method for both ranges. We recommend Mapei Ultrabond S997 1K Adhesive with a 16-gauge finishing brad (50mm over gib, 45mm over other substrates). Alor's locking joint profile also allows direct fixing to framing without gib.
Can it go over an uneven wall or ceiling?
Yes — shims, battens or packed-out plasterboard can bring the surface flush before installation. Minor irregularities can be handled with filler, levelling compound or adhesive adjustments. Always check with your installer for site-specific advice.
Will the timber move or change with the seasons?
Yes — timber is hygroscopic, meaning it naturally absorbs and releases moisture as conditions change. Keeping ambient temperature between 16-27°C and relative humidity between 40-60 percent minimises movement and hairline cracking. Expansion gaps and transition details in the design guide are built around this natural movement.
How does sunlight affect the panelling?
Direct, unfiltered UV exposure can noticeably change timber's colour within one to three months — darkening, lightening or yellowing. Surface temperatures above 45°C in direct sun increase the risk of cupping, warping and coating deterioration. Even 99.9 percent UV-blocking glass or film still lets through visible light and heat that can cause gradual colour change, so we recommend layering architectural glass or window film with curtains or blinds in high-sun rooms.
What's the warranty?
The engineered overlay system carries a 25-year structural warranty and a 7-year finish warranty. Alor carries a 7-year manufacturer warranty covering material and manufacturing performance under specified conditions.
Is it safe indoors — any formaldehyde concerns?
Both ranges achieve a Super E0 formaldehyde emission rating. As with any timber product, a dust mask is recommended when cutting.
How do you finish the edge where panelling meets gib, tile, joinery or another material?
Forté offers a range of transition solutions for each junction: metal angle trims and flat bars (silver, black, champagne, light and dark bronze anodised aluminium, plus brass and waxed steel organic finishes) for timber-to-carpet and timber-to-timber junctions; joinery angle trim colour-matched or powder-coated to suit; and colour-matched caulking for junctions with skirting, cabinetry or joinery. We don't sell tile trims — the Tilers Mate L-Angle Tile Trim is our general recommendation, sized to the tile thickness.
Can panelling sit flush or proud of the wall?
Both — flush for a seamless, continuous look, or proud to create shadow lines and design emphasis. The choice affects which trim detail is used at terminations and mid-wall junctions.
Can I use timber panelling in a bathroom?
It depends which range and how it's specified. The engineered overlay system has a documented Alternative Solution that complies with ISO 4760 for imperviousness, but it's limited to splash zones only — not continuous standing water or direct wet-floor showers — and must follow Forté's full wet-area installation system (waterproofing membrane, sealing, adhesives and edge detailing as specified). Alor is not recommended for wet areas or direct splash zones, including showers and bath surrounds, even with a wet-area installation system; it can be considered in dry-zone areas of a kitchen, bathroom or laundry that don't get direct water contact.
What humidity level should the room be kept at?
40-60 percent relative humidity is ideal for both ranges. Below 35 percent or above 70 percent increases the risk of product movement and hairline cracks. In wet-area installations, ventilation should keep humidity below 60 percent, with mechanical extraction where needed.
What is engineered timber wall panelling?
Engineered timber wall panelling features a solid timber veneer bonded to a backing of plywood, pine or hevea. It offers greater stability than solid timber panelling while providing the same rich, natural appearance once installed.
What is a Lamella?
A lamella is a thin plank or sheet of solid timber, much like a wood veneer only thicker. Lamella thickness can range from 2.5-10mm, whereas veneers are usually less than 2.5mm thick.
What is HDF/MDF Core Wall and Ceiling Panelling?
HDF/MDF core wall and ceiling panelling features a high-density engineered fibreboard core made from compressed wood fibres and resin. It delivers exceptional stability and a smooth, consistent surface, ideal for decorative finishes. The result is a refined, uniform appearance with improved resistance to movement compared to solid timber.
What timber wall and ceiling options does Forté offer?

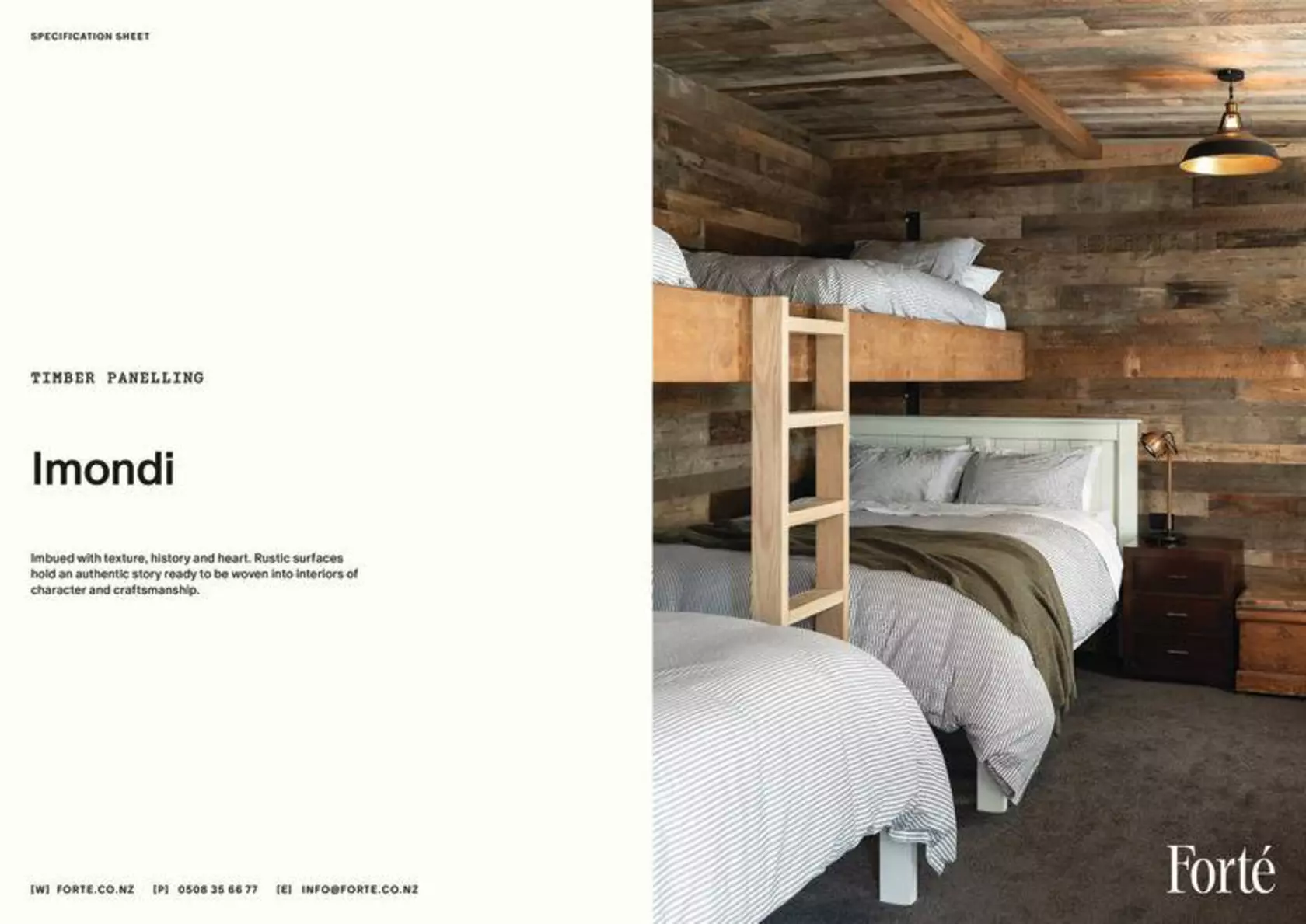

Two systems: our engineered timber overlay collections (Imondi and Tactile, in a range of engineered European Oak finishes) and Alor, a prime-grade European Oak or American Walnut veneer panel. All Forté flooring collections are also suitable for wall and ceiling use, so you can carry the same finish from floor to wall for a continuous look.
What's the difference between the engineered overlay collections and Alor?
The engineered overlay range (Imondi, Tactile) uses a thicker wear layer (4-6mm solid European Oak over a plywood core) and comes in rustic grading with visible character — knots, cracks and colour variation. Alor is a lighter veneer system (0.6mm European Oak or American Walnut over an HDF core) in a clean, knot-free prime grade, supplied in long 2.7 metre lengths with a locking joint profile that installs directly onto framing, without gib.
Why do some boards show more knots or colour variation than others?
That comes down to grade, not quality. Clear grade is close to flawless; Prime is mostly uniform with subtle character; Light Feature, Feature and Rustic grades show progressively more knots, cracks and colour variation. Markings such as knots, sapwood, medullary rays, cracks and pinholes don't affect strength — they're part of the timber's natural character, and the specification sheet for each product notes what to expect.
